WorkPoint 365 Master Site Synchronization

1. Introduction

Master sites enable super users to setup web parts and lists, and act as a template for other entity sites in the same business module.

Master site synchronization takes the changes to a master site and synchronizes them to other entity sites.

2. Configuring The WorkPoint Master Site Settings

 The Master Site settings are located in the WorkPoint Administration.

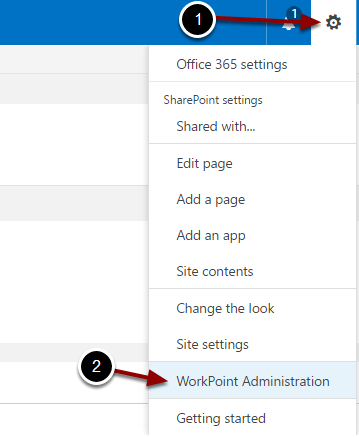

  1. Click on the Home button on the solution.
  2. Then click the cog to access the WorkPoint Administration.

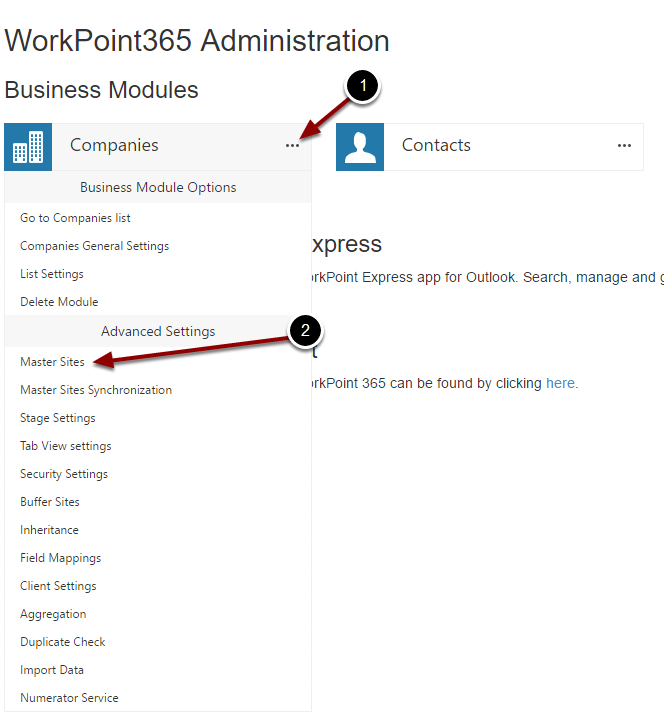

3. Opening The Master Site Settings For A Business Module

  1. Choose a business module and click on the "..." button next to it.
  2. Click on "Master Sites".

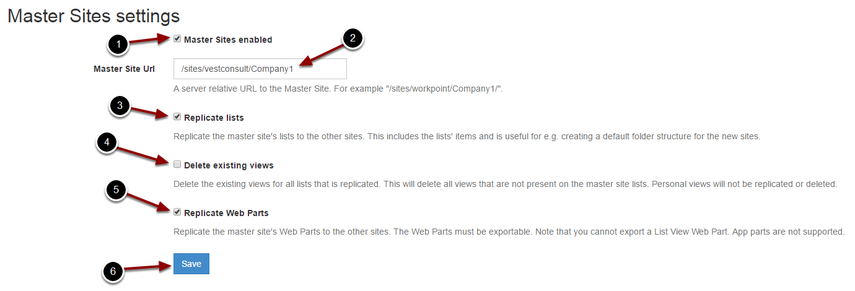

4. Editing The Master Site Settings

  1. Set this tick to enable the Master Site feature for this business module.
  2. Enter the server relative URL to the Master Site.
  3. Set this option to replicate all lists and their items to entity sites. (including content types, fields, list items and list settings) Please note that items only are inserted on entity sites and can not be deleted via the Master Site feature.
  4. Set this option to replicate the master site's field resources/localization to other sites. IMPORTANT: This is very resource intensive, and should be used only when strictly necessary.
  5. Set this option to overwrite all views that exist on entity sites' lists with the views configured on the Master Site and its sub-lists.
  6. Set this option to replicated web parts from the master site to the entity sites. Please note that the web parts must be exportable and that List View Web Parts and App parts aren't supported. Click here to configure a web part to be exportable.
  7. Set this to replicate features from the master site onto other sites.
  8. Set this to replicate Quick Launch Navigation from the master site onto other sites.
  9. Set this to replicate Nintex Workflows from the master site onto other sites.
  10. Click on "Save" to continue.

5. Synchronizing Sites With The Master Site

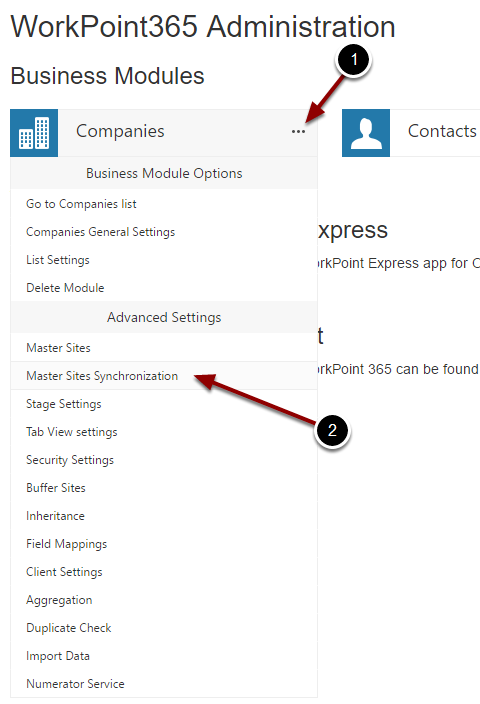

  1. In the WorkPoint Administration click on the "..." button of a business module.
  2. Click on "Master Sites Synchronization".

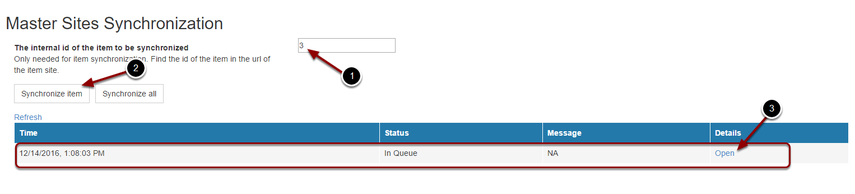

   5.1. Synchronizing A Single Site

  1. Enter the ID of the entity site you want to synchronize. Note that you can always find the ID of an entity in its site URL. (in this example: 2 = /sites/project2). Alternatively, you can add the entity ID as a business module list column and have that column show in some view. This will also make the entity ID visible.
  2. Make appropriate choices as to which aspects of the master site should be replicated onto the site in question.
  3. Make appropriate choices as to which lists to synchronize from the master site onto the site in question. These items can be expanded and further specified as shown in the following image:

Note that the selection of replicable aspects of the lists are the same for all the available lists.

  1. Click "Synchronize item id #".

In some cases, only specific areas or lists need to be synchronized from the master site. In this case, one should only select the relevant aspects to synchronize, as master site synchronization can be a relatively heavy task for the system, and may take a while, depending on the amount of sites and aspects to synchronize.

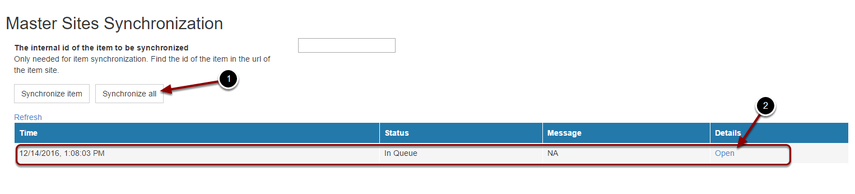

   5.2. Synchronizing All Sites In A Business Module

  1. Leave the internal id-field empty.
  2. Make appropriate choices as to which aspects of the master site to synchronize onto all business module sites.
  3. Make appropriate choices as to which lists to synchronize from the master site onto all business module sites.
  4. Click "Synchronize all".

In some cases, only specific areas or lists need to be synchronized from the master site. In this case, one should only select the relevant aspects to synchronize, as master site synchronization can be a relatively heavy task for the system, and may take a while, depending on the amount of sites and aspects to synchronize.

   5.3. Synchronizing sites from a specific entity and onwards

Through master site synchronization, it is also possible to select a business module entity and synchronize from the master site onto that entity site, and onwards to other entity sites after that one.

An example could be a Project Manager wanting to update the sites of ongoing projects, but does not wish to disturb the already closed projects in his projects list. He can then select the ID of the first entity that he wants to synchronize, and select to synchronize that one and the following ones.

To do this, follow these steps:

  1. Input the internal entity ID of the first entity which site should be synchronized from the master site.
  2. Make appropriate choices as to which aspects of the master site should be synchronized onto the other sites.
  3. Make appropriate choices as to which lists should be synchronized from the master site onto the other sites. Note that these headers can be expanded to reveal several sub-selections.
  4. Click the "Synchronize from item id #"-button.

All entity sites from entity ID 953 and onwards will be synchronized from the master site. This is a good way to reduce the work load of the operation, as the system does not need to synchronize sites of projects that have already been closed.
